An HVAC plenum box installation done right is quiet, airtight, and invisible after drywall goes up. Done wrong, it sweats in humid climates, whistles when the blower kicks on, and leaks conditioned air into the attic. This is the step-by-step process I have watched contractors follow on hundreds of Cryptic Air installs across Florida.

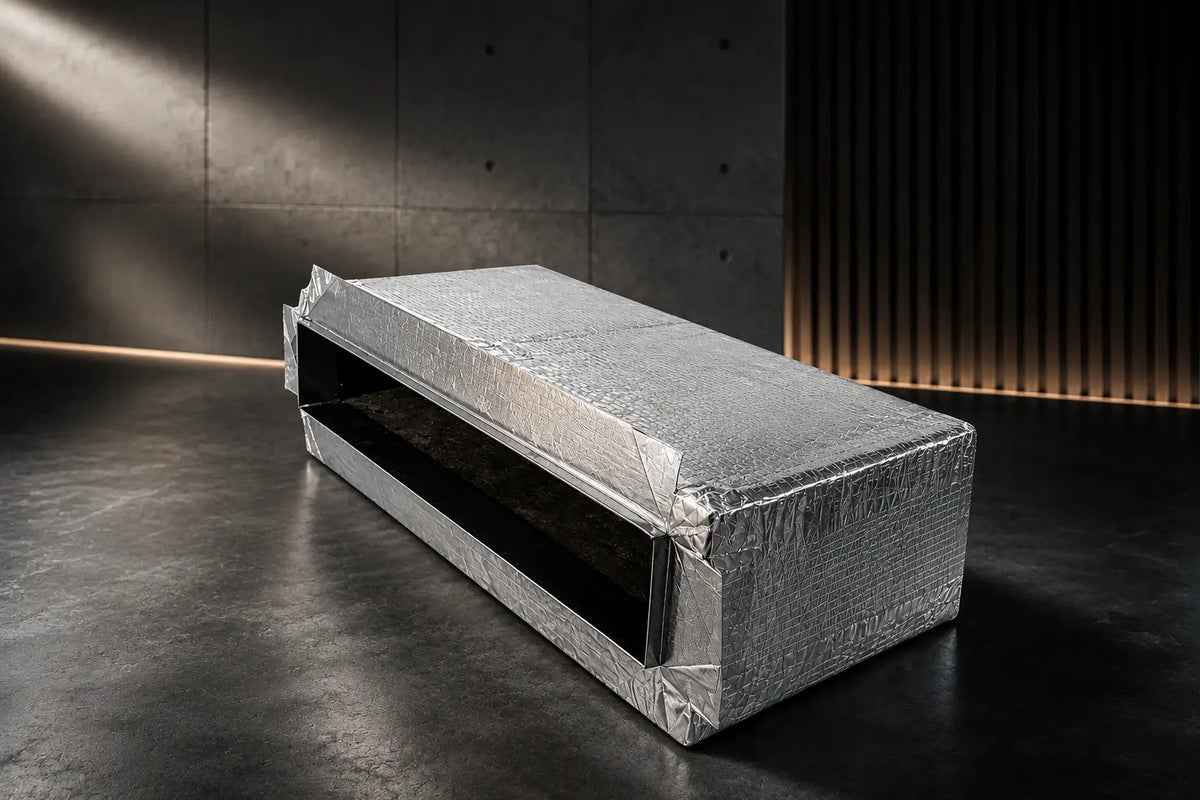

I'm Ben Zaudrer, third-generation HVAC and founder of Cryptic Air. We build R6 insulated fiberglass plenum boxes in Miami. Here is how to install one correctly, whether you are working on a new construction supply plenum, a retrofit branch plenum feeding a linear slot diffuser, or replacing a failed plenum in an existing home.
What Tools Are Essential for Plenum Box Installation?
The tool list is short. What tools are essential for plenum box installation? A tape measure, sheet metal snips or a drywall saw depending on the substrate, a drill with a hex driver, mastic sealant (not just foil tape), UL 181 foil tape for the seams, a caulk gun, safety glasses and gloves (fiberglass is nasty on skin), and a stud finder if the plenum will hang from framing.
Optional but useful: a small level, painters tape to mark the cut before you saw, a shop vac to clean the duct opening before you connect, and a headlamp for attic work.
Step-by-Step: How to Install a New HVAC Supply Plenum Box
Here is how to install a new HVAC supply plenum box. This assumes you are working with a Cryptic Air branch plenum feeding a linear slot diffuser, but the sequence is the same for any residential branch plenum.
Step 1. Confirm the rough opening. The plenum's rough-in dimensions come from the manufacturer spec sheet. Cut the drywall (or measure the framing on new construction) to those exact numbers. Tolerance is tight. On new construction, coordinate with the drywall sub before they hang the sheet.
Step 2. Set the plenum in the opening. The plenum drops in from above (attic side or above the ceiling grid) and rests against the drywall face on the room side. On new construction, set the plenum before drywall hangs. On retrofit, feed the plenum through the cut opening at an angle and pivot it into place.
Step 3. Secure the plenum to framing. Fasten the plenum's mounting flanges to the ceiling joists or blocking above. For heavy plenums, add blocking between joists to carry the weight. Do not rely on drywall alone to support a plenum.
Step 4. Connect the duct. Attach the flex or rigid supply duct to the plenum's duct collar. Use a large diameter zip tie or a metal band clamp for flex duct. Rigid connections get sheet metal screws every 3 to 4 inches around the collar.
Step 5. Seal every joint with mastic. Apply mastic (not just foil tape) at the duct-to-plenum connection, at the plenum's seams if you did any field cuts, and around the plenum's rough-opening flange where it meets the drywall or framing. Foil tape alone dries out and loses adhesion within 5 to 10 years. Mastic is a 30-plus year seal.
Step 6. Verify insulation continuity. In humid climates like Florida, any exposed metal or bare fiberglass at joints becomes a condensation point. Cover exposed spots with additional insulation or insulation tape. Cryptic Air plenums come pre-insulated at R6 out of the box, but field cuts need to be re-covered.
Step 7. Install the diffuser. With the plenum set and sealed, install the linear slot diffuser or vent that matches the plenum. For a Cryptic Slot, the framed aluminum face screws into the plenum's mounting flanges. For a mud in linear diffuser like Cryptic Pro, the drywall sub muds the flush flange during finish.
How Do I Properly Install an HVAC Plenum Box in a Residential System?
Residential installs have specific nuances that new-construction commercial work does not. The biggest three:
Work with what you can reach. Attic installs in the Florida summer are 130 degrees. Work early morning or after sunset. Bring a headlamp, water, and a partner. Rushing a plenum install because you are miserable in the attic is where mistakes happen.
Airtight beats close-enough. In a residential system, the plenum is likely sitting in an unconditioned attic. Any leaks pull hot, humid outside air into the supply. Seal everything with mastic even if it looks tight. A leaky plenum in a Miami attic destroys the whole system's efficiency.
Support the weight properly. An R6 fiberglass plenum with a 24-inch linear slot diffuser can weigh 20 to 40 pounds. Suspended from drywall alone, it will sag over time and pull the drywall down. Support the plenum from the ceiling framing with straps or blocking.
Common Errors During DIY HVAC Plenum Setup
Common errors during DIY HVAC plenum setup we see over and over:
Inadequate sealing. Using only foil tape and no mastic. The tape looks sealed but pulls off within 5 years and lets attic air into the supply. Always mastic first, tape second.
Wrong plenum size. Buying a "close enough" plenum instead of a matched one. If the plenum's cross-section is 25% smaller than needed, it whistles. 25% larger, it loses static pressure and the diffuser throws unevenly. See our how to calculate plenum box size guide for the math.
No support to framing. Hanging the plenum only from drywall. Within a year, the drywall sags and the plenum face is visibly out of plane with the ceiling.
Uninsulated field cuts. Cutting the plenum to fit and leaving bare fiberglass exposed on the interior side. Air passes over the fiberglass and pulls fibers into the room. Cover every field cut with insulation tape.
Forgetting the duct clamp. Slipping the flex duct over the collar without a clamp. The duct pulls off the collar the first time the blower kicks on hard.
Skipping the rough-in inspection. In new construction, the rough HVAC inspection is where the inspector checks duct connections, insulation, and sealing. Skipping it means finding problems after drywall closes everything in.
Upgrade Your HVAC System With Cryptic Air
If you are installing a plenum, you are already spending the money and time to do it right. Cryptic Air builds R6 insulated fiberglass plenum boxes factory-matched to our linear slot diffusers. Ships in 4 to 8 calendar days from Miami. Standard sizes for 1-slot, 2-slot, and 3-slot diffusers are online. Larger custom sizes are by phone at 786-981-1676.
For a full picture of what a plenum does and why it matters, start with what is a plenum box and pair it with our linear slot diffuser installation guide.
