What is a linear slot diffuser, and why is it the go-to air vent for high-end modern homes and commercial spaces? A linear slot diffuser is a long, narrow HVAC air outlet designed to deliver conditioned air along a continuous slot rather than through a single grille, giving you a clean architectural line in the ceiling, wall, or floor instead of a stamped register. If you have ever walked into a custom home and noticed the ceilings looked unusually clean, you probably saw one and did not know what to call it.
I'm Ben Zaudrer, third-generation HVAC and founder of Cryptic Air. We manufacture framed aluminum linear slot diffusers in Miami, factory-direct, in 1-slot through 12-slot configurations. Here is the complete picture on what a linear slot diffuser is, how it works, and why it has become the modern standard for how vents should look in high-end spaces.
What Exactly is a Linear Slot Diffuser?
What exactly is a linear slot diffuser? It is an air distribution outlet with one or more narrow slots running along its length, designed to deliver supply or return air evenly across a linear opening. The visible face is a single straight line (or two, or three, depending on slot count) in the ceiling, wall, or floor. Standard residential slot widths run between 3/8 inch and 1 inch. Length is typically 2 feet to 12 feet, though custom sizes are available.
From below, you see a slot. From across the room, you see a line. From directly in front, you cannot easily see it at all. That is the point. A linear slot diffuser is designed to disappear into the architecture instead of interrupting it.
Cryptic Air's flagship product is the Cryptic Slot, a framed aluminum linear diffuser available in 1-slot through 12-slot configurations. Custom lengths and widths are included at no upcharge because that is what modern architects and design-build contractors actually need.
What is a Linear Slot Diffuser and How Does It Work?

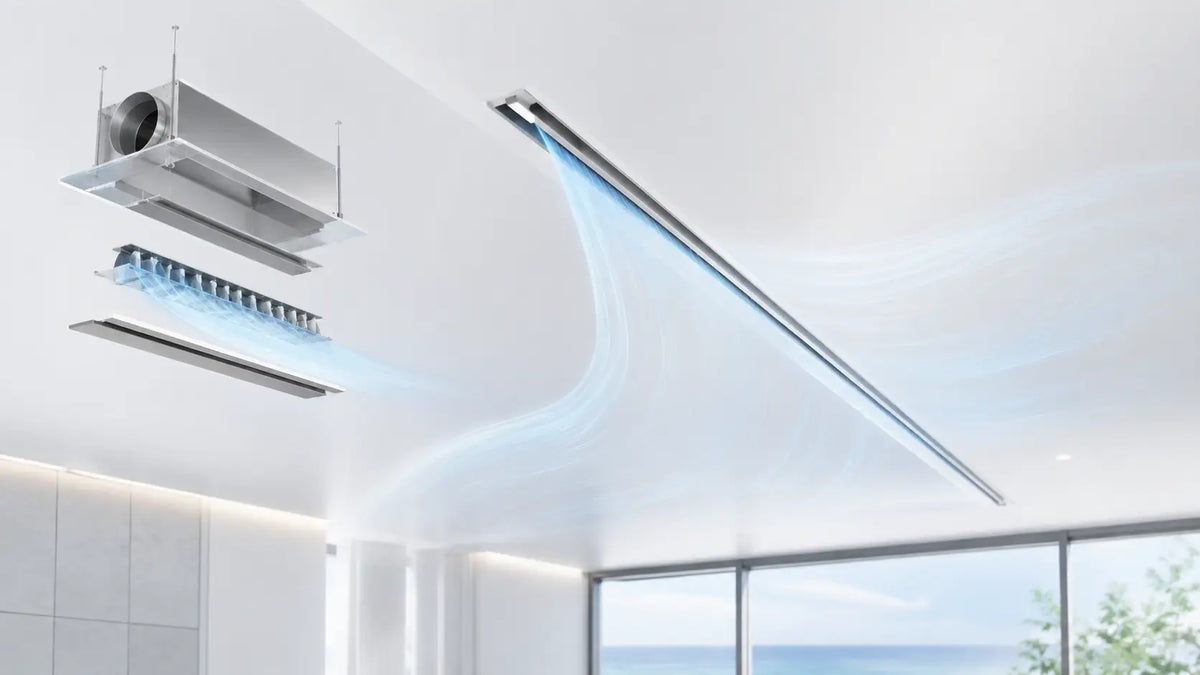

What is a linear slot diffuser and how does it work? The mechanics come down to three pieces working together: the slot opening, the internal deflectors, and the plenum box behind it.
The slot opening is the visible face of the diffuser. Air passes through it into the room. Narrower slots give a longer throw and lower CFM per foot; wider slots give more airflow at the cost of a shorter throw distance.
The internal deflectors are small vanes or cores inside the diffuser that shape the exit angle of the airflow. Straight-down deflectors are standard for residential ceilings. Adjustable deflectors let you tilt the throw to compensate for asymmetric room geometry.
The plenum box is the insulated air chamber behind the diffuser. It holds air at a stable pressure and lets it spread across the full length of the slot before exiting. Without a plenum, a linear diffuser dumps most of its air out just above the duct connection and none out the ends. See our what is a plenum box guide for the full breakdown.
How do linear slot diffusers distribute air? They use the Coanda effect. Air exits the slot at a downward angle and hugs the ceiling (or wall, or floor) for a distance before dropping into the room. That reduces drafts, spreads the air across a wider area, and prevents the hot or cold spots you get with standard grilles. On a properly designed system, you feel comfortable temperature throughout the room instead of a strong airflow right below the vent.
What Are the Benefits of Using a Linear Slot Diffuser in Commercial Buildings?
What are the benefits of using a linear slot diffuser in commercial buildings? Five things that matter to building owners, architects, and MEP engineers:
Superior air mixing. The Coanda effect and linear distribution spread air more evenly than any single-point diffuser. In large commercial spaces (retail floors, restaurants, office open-plans), that means fewer hot and cold complaints and easier occupancy comfort control.
Reduced noise. A properly sized linear slot diffuser paired with a proper plenum runs under NC 25 at design flow. That is quiet enough that occupants stop noticing the HVAC entirely, which is the goal in restaurants, hotels, and boutique retail.
Architectural integration. Linear diffusers disappear into modern ceilings. In premium retail, hospitality, and commercial spaces where the ceiling is a design element (exposed structure, board-formed concrete, drywall coves), a stamped grille breaks the visual language. A linear slot does not.
Higher throw distance. Commercial spaces have high ceilings. A linear slot diffuser at the right slot width can throw air 20 to 40 feet horizontally along the ceiling before dropping. That covers a huge floor plate with fewer diffusers.
Better indoor air quality control. Even air distribution means fewer stagnant zones, better filtration effectiveness, and cleaner air overall. That matters in commercial buildings governed by ASHRAE 62.1 ventilation standards.
How to Install a Linear Slot Diffuser in a Residential HVAC System?
How to install a linear slot diffuser in a residential HVAC system is a full guide of its own (see our linear slot diffuser installation guide for the step-by-step). Here is the short version.
Plan in the framing phase. Set the plenum box location before drywall hangs. Coordinate with the HVAC sub on duct connection points and the drywall sub on the finish opening.
Rough HVAC. Install the plenum box, connect the flex or rigid duct, seal every joint with mastic. Verify insulation on the plenum's exterior in humid climates.
Drywall. Drywall goes up around the plenum with the correct rough opening for the diffuser frame. For a Cryptic Slot, that is a framed opening. For a Cryptic Pro, it is a mud-in flange that the drywall sub muds flush during finish.
Install the diffuser. With the plenum in place and drywall done, the diffuser frame drops into the opening and screws into the plenum's mounting flanges. Cryptic Slot is retrofit-capable, so it works both in new construction and in replacement installs.
Test airflow. Run the system. Check throw distance at the diffuser's far end. If you hear whistle or feel dead spots, the plenum sizing is usually the culprit. See our how to calculate plenum box size guide.
