What is a plenum box, and why does it decide whether your HVAC system runs quiet and even or noisy and uneven? A plenum box is the insulated chamber that sits between the air handler and the ductwork (or between a duct and a diffuser), holding air at a stable pressure so it can be distributed cleanly through the rest of the system. Get the plenum wrong and no diffuser on earth will save the install.
I'm Ben Zaudrer, third-generation HVAC and founder of Cryptic Air. We build R6 insulated plenum boxes in Miami, factory-direct, to pair with our linear slot diffusers. Here is the full picture on what a plenum box does, why it matters, how to size it, and how it connects to the rest of your HVAC.
What is a Plenum Box in HVAC?

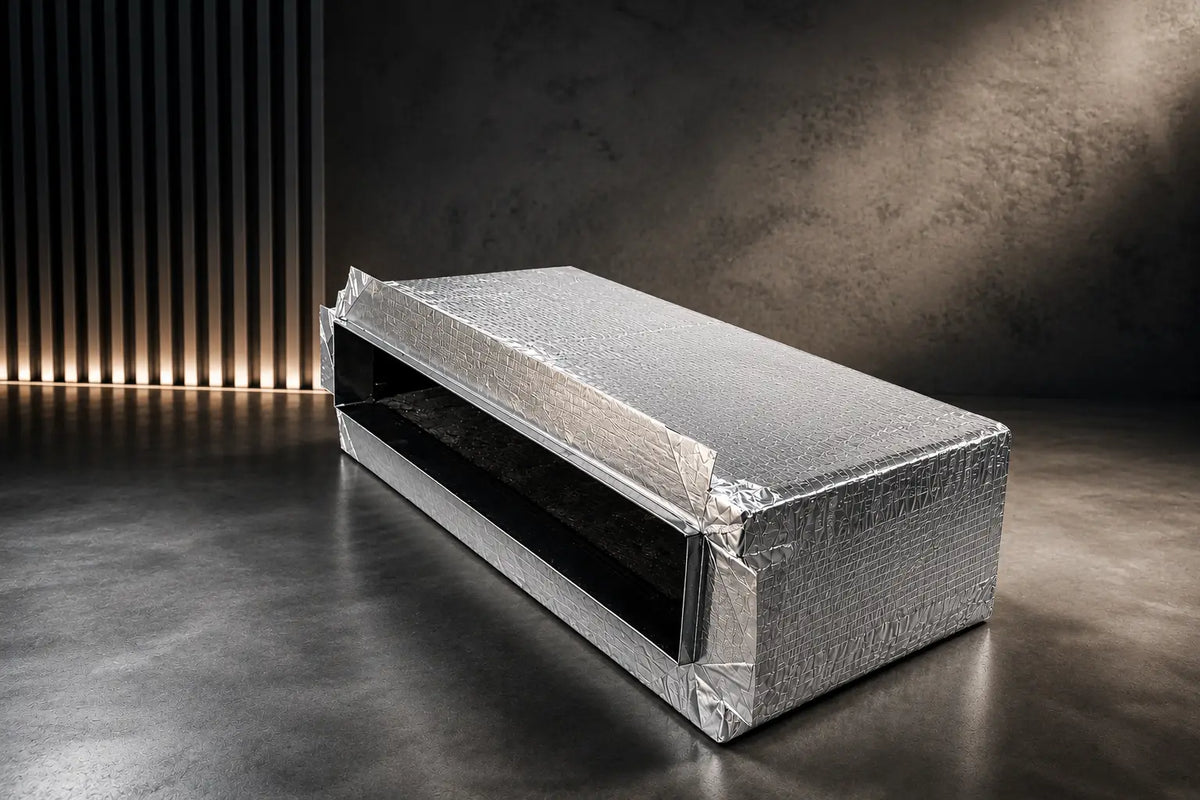

In HVAC, a plenum box is an enclosed, insulated air chamber that connects a source of conditioned air (the air handler, or a branch of duct) to one or more outlets (vents, registers, or a linear slot diffuser). It holds air at a stable static pressure and gives the air time to slow down before it exits through the vent. That pressure buffer is what makes the airflow even, quiet, and directional.
When someone asks what is a plenum box hvac, the short version is this: it is the piece behind the vent. When someone asks what is a plenum box in hvac at the equipment level, the answer is the supply plenum bolted directly on top of the furnace or air handler that distributes air out to the entire duct system. Both are plenums. Both do the same job at different scales.
Every Cryptic Air linear slot diffuser gets paired with an R6 insulated fiberglass plenum box because a diffuser without a properly sized plenum is a diffuser that whistles, throws air unevenly, and sweats in humid weather. The plenum is not optional.
What is the Purpose of a Plenum Box?
The purpose of a plenum box is to give the air a controlled space to expand, slow down, and equalize before it enters the room. What is a plenum box used for in a working HVAC system? Four jobs, all of them mattering more than most homeowners realize.
Pressure equalization. Air coming out of the air handler moves fast and turbulent. Slam it directly into a diffuser and you get whistle, uneven throw, and dead spots. The plenum lets the air pressure normalize across the full width of the diffuser before it exits.
Airflow direction. A well-designed plenum shapes the entry angle into the diffuser. On a linear slot diffuser, that means air enters the slot from a stable, downward-facing chamber instead of from a single duct connection.
Insulation. In humid climates like Florida, an uninsulated plenum will condense on its outside surface, drip onto drywall, and start staining the ceiling within a few weeks. R6 fiberglass insulation prevents that at the air-handler side and at every diffuser connection downstream.
Noise reduction. Turbulent air is noisy air. The plenum lets the turbulence dissipate against the insulated walls before it reaches the room.
What is the main function of a plenum box in residential HVAC? Answering it as one sentence: the plenum turns fast, turbulent, unbalanced air into slow, quiet, evenly-distributed air that a vent or a linear slot diffuser can deliver cleanly to the room. Every good install starts with the plenum. The visible vent is the last thing that gets specified, not the first.
How Does a Plenum Box Improve Air Distribution in Ventilation?
A plenum box improves air distribution by acting as a central manifold. Air enters from one point (the duct connection at the top or side), fills the chamber, and exits through the diffuser or grille across the full opening. That geometry does three things simultaneously.
It removes single-point delivery. Without a plenum, a supply air register that connects directly to a 6-inch duct gets almost all its airflow through the center of the grille and much less at the edges. Homeowners feel it as a hot or cold spot directly under the vent. With a properly sized plenum behind the register, the air exits uniformly across the entire face of the vent.
It buffers the pressure between the duct and the room. A linear slot diffuser is a 1/2-inch to 1-inch slot running feet long. If you tried to blow air through it straight from a round duct, most of the air would exit right above the duct connection and none would reach the ends of the slot. The plenum spreads the pressure across the slot's full length before air ever leaves the diffuser.
It gives you a clean install boundary. From an installation standpoint, the plenum is where the duct system ends and the finish work begins. Drywall subs know the plenum sits above the ceiling. HVAC subs know the plenum is what connects to the flex or rigid duct. That physical separation prevents finger-pointing between the trades when something goes wrong.
At Cryptic Air, our 1-slot, 2-slot, and 3-slot plenum boxes are dimensioned specifically to match our matching linear slot diffusers. Airflow enters through the flexible duct collar on top, spreads across the insulated chamber, and exits evenly down the slot. That is not a coincidence, that is the whole point.
What is the Correct Way to Size a Plenum Box for My Air Handler?
Sizing a plenum box comes down to matching the box's cross-sectional area to the CFM (cubic feet per minute) the system is delivering, at a target air velocity that keeps noise down. Undersized plenums whistle, oversized plenums lose static pressure and reduce throw. Both hurt the install.
Here is the rule of thumb most residential HVAC contractors use:
-
Target air velocity inside the plenum: 500 to 900 feet per minute (FPM). Under 500 FPM the plenum is oversized. Over 900 FPM it will get loud.
-
Cross-sectional area (square inches) = CFM x 144 / target velocity.
-
CFM comes from a Manual J load calculation. If you do not have a Manual J, get one. Guessing CFM is the number one reason plenum installs fail.
Example: a 400 CFM branch feeding a linear slot diffuser at a target 750 FPM needs a cross-section of 400 x 144 / 750 = 77 square inches. That is roughly a 5-inch by 15-inch plenum opening at the face of the box.
Once you have the plenum sized, you have to match the diffuser to it. A plenum is only as good as the diffuser sitting on it. See our guide on the linear slot diffuser cfm chart for how to pair the two.
At Cryptic Air we make the plenum sizing decision easy: every one of our plenum boxes is factory-matched to a specific linear slot diffuser. Order the 1-slot Cryptic Slot, get the matching 1-slot plenum box. Order the 2-slot, get the 2-slot plenum. Order 3-slot, get the 3-slot plenum. No calculations, no guessing. Larger custom sizes are by phone at 786-981-1676.
How to Read a Linear Slot Diffuser CFM Chart Accurately
Since a plenum box is almost always paired with a linear slot diffuser, sizing one without checking the other is a mistake. A CFM chart tells you what airflow a specific diffuser can handle at a given slot width and throw distance, and it feeds directly into the plenum sizing calculation.
To read one accurately: pick your target CFM per linear foot (from the room's load calculation), find the row that matches your slot width, read across to the noise criteria (NC) column, and confirm the diffuser will stay under NC 25 for residential (NC 30 for commercial). If the chart shows the diffuser will be over NC 30 at your target CFM, you either need a wider slot, a longer diffuser, or a bigger plenum to slow the air down.
We go deeper on this in our dedicated guide: how to read a linear slot diffuser CFM chart accurately.
Upgrade Your HVAC System With Cryptic Air
If you are spec'ing a system, replacing an old plenum, or installing linear slot diffusers on a custom home, the plenum decision matters more than the diffuser style. At Cryptic Air, we make R6 insulated fiberglass plenum boxes that ship factory-direct in 4 to 8 calendar days. Standard sizes for 1-slot, 2-slot, and 3-slot linear diffusers are on the site. Larger custom configurations, mud-in details for Cryptic Pro, or fully custom plenum dimensions all go through the phone: 786-981-1676. A Florida HVAC professional will help you size the whole assembly.
Browse the plenum box collection or start with the matching linear slot diffuser and pair it correctly the first time.
