Learning how to calculate plenum box size correctly is the difference between an HVAC system that runs quiet and even and one that whistles, hot-spots, and burns out its blower motor. The math is not complicated, but almost every DIY install and half of the pro installs I see get it wrong. Here is the process we use at Cryptic Air when a contractor or homeowner calls asking us to size a plenum for their system.
I'm Ben Zaudrer, third-generation HVAC and founder of Cryptic Air. We manufacture R6 insulated plenum boxes in Miami that pair with our linear slot diffusers. This is the working guide.
How Do I Determine the Correct Plenum Box Size for HVAC Systems?
To determine the correct plenum box size for an HVAC system, you match the plenum's cross-sectional area to the CFM (cubic feet per minute) the system delivers at a target air velocity between 500 and 900 feet per minute. Below 500 FPM the plenum is oversized and static pressure collapses. Above 900 FPM the plenum whistles and the diffuser downstream gets loud enough to notice at rest.
The critical inputs are three:
-
System CFM. From a Manual J load calculation. Do not guess.
-
Target velocity. 500 to 900 FPM for residential, 700 to 1,200 FPM for commercial.
-
Insulation R-value. R6 is the practical floor in Florida, the Gulf Coast, and anywhere humid. Uninsulated plenums sweat.
Everything else, including plenum shape and duct connection geometry, is downstream of these three numbers. If you get the CFM and target velocity right, the plenum will do its job.
Step-by-Step: How to Calculate Supply Plenum Box Size
Here is how to calculate supply plenum box size, step by step. This is the same math a residential Manual D calculation uses, simplified for the diffuser or vent side.
Step 1. Get the CFM for the branch. Pull the branch CFM off the Manual J and Manual D duct design. Example: a primary bedroom needs 250 CFM.
Step 2. Pick a target velocity. Start at 750 FPM for residential. Adjust down (500 to 700 FPM) if noise is critical (bedroom, home theater). Adjust up (800 to 900 FPM) if space is tight and a small amount of noise is acceptable.
Step 3. Calculate cross-sectional area. What formula is used to accurately calculate the dimensions of a supply air plenum? Use this:
Cross-sectional area (in square inches) = CFM x 144 / target velocity (in FPM)
For our 250 CFM bedroom at 750 FPM: 250 x 144 / 750 = 48 square inches.
Step 4. Choose the plenum's face dimensions. Match the cross-section to the diffuser's opening. For a Cryptic 2-slot linear diffuser 4 inches wide, the plenum face would be 4 inches by 12 inches (48 square inches). For a 6-inch-wide 3-slot diffuser, the plenum face would be 6 inches by 8 inches (also 48 square inches).
Step 5. Add the plenum depth and duct collar. Plenum depth is typically 6 to 12 inches for residential. Add a 6-inch or 8-inch flex duct collar on top to connect to the branch duct.
Step 6. Confirm the noise rating. Look at the diffuser's CFM chart. At 250 CFM, the noise criteria (NC) should stay under 25 for residential. If the diffuser is rated NC 30 at that flow, size up the plenum (increase cross-section by 25%) to slow the air down and reduce noise.
Done. Order the plenum in those dimensions, or order a Cryptic Air plenum that is already matched to a specific diffuser and slot count.
What Factors Affect the Sizing of a Plenum Box in Air Handling Units?
Several variables affect the sizing decision beyond just system CFM. The main ones:
Number of duct runs. A plenum at the air handler feeding six branch ducts needs to be sized for the total air handler CFM, not just one branch. The trunk plenum on top of the furnace is a different sizing exercise than a diffuser plenum. Trunk plenums target 700 to 1,000 FPM velocity for residential; branch plenums for individual diffusers use the numbers above.
Diffuser slot count and length. A linear slot diffuser at 4 feet long delivering 200 CFM per foot needs a plenum wide enough to spread that airflow across the entire slot. Undersized plenums cause the ends of the slot to lose throw. Cryptic Air's plenum boxes are dimensioned to match specific diffuser slot counts precisely for this reason.
System tonnage. A 3-ton system running at 1,200 CFM at the air handler pushes way more air than a 1.5-ton system at 600 CFM. The main trunk plenum has to grow with tonnage even if the branch plenums do not.
Static pressure at the air handler. High external static pressure (over 0.5 in wc) can be a symptom of undersized ducts and plenums throughout the system. If measured static is over spec, sizing the plenum by CFM alone will not fix it. The whole duct system needs rework.
Climate. In humid climates, insulation R-value matters as much as dimensions. An uncased plenum in a Florida attic sweats and drips within weeks. R6 fiberglass is the practical minimum. Cryptic Air plenums come with R6 insulation standard.
Where Can I Find Software Tools for Calculating Plenum Box Dimensions?
There are a few reliable options if you would rather not do the math by hand.
Manual J / Manual D software. ACCA-approved software like Wrightsoft Right-J and Right-D handles the full load calculation and duct sizing including plenums. Standard tool for residential HVAC contractors. Requires a license.
Free HVAC calculators. Greenheck's diffuser selection tool covers the diffuser and plenum sizing side. Krueger's reference charts do the same. Search "linear diffuser CFM chart" and pick a manufacturer whose data you trust.
Manufacturer sizing charts. Every reputable diffuser manufacturer publishes CFM charts for their products with NC ratings and throw distances at various flows. If you are using a specific brand of diffuser, use their chart to size the plenum behind it.
Cryptic Air's direct approach. For our product line, the plenum sizing math is already done. Our 1-slot, 2-slot, and 3-slot plenum boxes are pre-matched to our matching linear slot diffusers. Larger custom configurations are by phone at 786-981-1676 and a Florida HVAC professional handles the math with you on the call.
Upgrade Your HVAC System With Cryptic Air

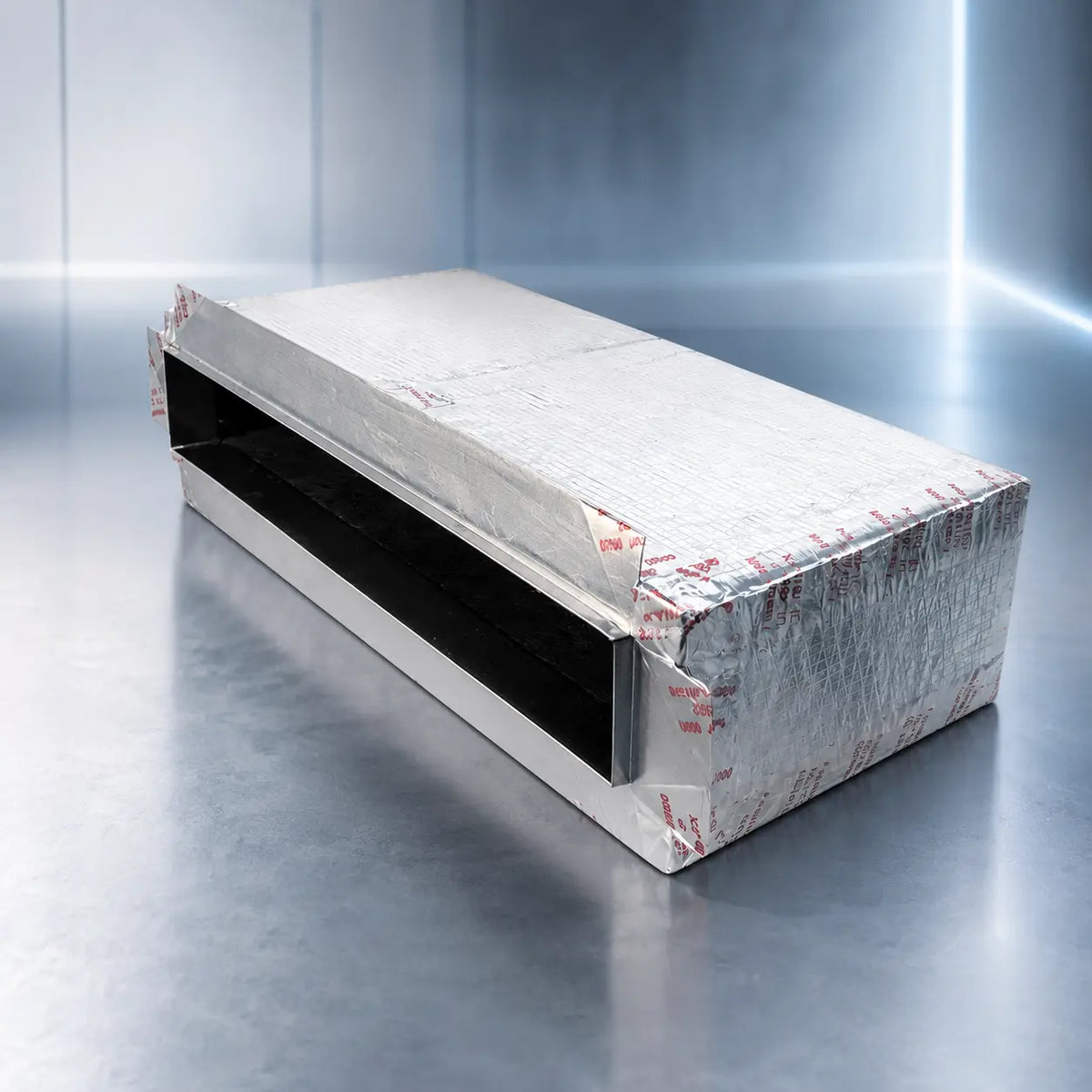

Whether you are speccing a new system or replacing an old plenum, the sizing decision drives noise, efficiency, and long-term reliability more than any other single install detail. At Cryptic Air, we build R6 insulated fiberglass plenum boxes factory-direct in Miami. Standard sizes for 1-slot, 2-slot, and 3-slot linear diffusers ship in 4 to 8 calendar days. Larger custom dimensions are quoted by phone at 786-981-1676.
Browse the plenum box collection, see our what is a plenum box primer for background, or start with the matching linear slot diffuser and pair the two correctly.
Ben Zaudrer
Founder, Cryptic Air
