Choosing the right number of slots for a linear slot diffuser starts with the airflow required at the outlet and the size of the existing or planned duct opening. Slot count and diffuser length both affect the product's rated CFM. Use the mechanical plan and current product rating rather than estimating airflow from room area alone.

I'm Ben Zaudrer, third-generation HVAC professional and founder of Cryptic Air. We cut and finish our Cryptic Slot diffusers in our Miami factory and manufacture matching R6 insulated fiberglass plenums. This guide explains how to compare slot counts and lengths, check a retrofit opening, and plan a compatible plenum for a new installation.

Quick Answer: Slot Count by Opening Width

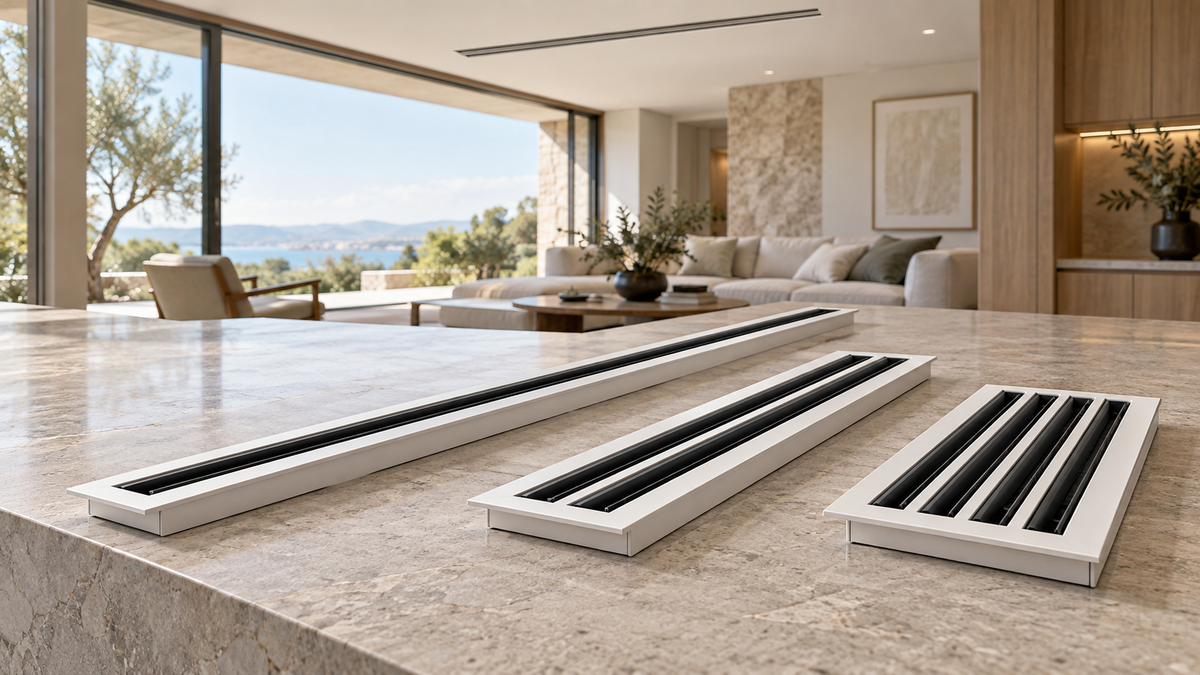

Cryptic Slot models use 1-inch air slots. Each additional slot adds 2 inches to the nominal opening width. The table shows how slot count relates to the duct opening, not how much airflow a particular room needs.

Slot Count

Nominal Opening Width

Air Slot Width

Rated CFM

1 slot

2 inches

1 inch

Varies by length; check product page

2 slots

4 inches

1 inch per slot

Varies by length; check product page

3 slots

6 inches

1 inch per slot

Varies by length; check product page

4 slots

8 inches

1 inch per slot

Varies by length; check product page

Listed width means nominal duct opening, not face width. The face is wider. Required outlet airflow must come from the mechanical design. Square footage alone is not a reliable CFM sizing calculation.

Slots vs. Length: The Tradeoff That Actually Matters

Cryptic Slot's rated CFM depends on both slot count and length. More slots or a longer diffuser generally increases the rating. Different combinations can have a similar rated CFM, but suitability for an installation also depends on the HVAC design and ductwork.

An 84" × 2" 1-slot diffuser and a 42" × 4" 2-slot diffuser both have a calculated catalog rating of about 353 CFM. This is not a lab-tested throw or noise figure. Check the live product listing and confirm system suitability with the HVAC contractor.

Cryptic Slot's approximate catalog rating is 4.2 × slot count × diffuser length in inches, or roughly 50 CFM per foot per slot. This is a size-based rating, not a guarantee of delivered airflow.

For example, a 3-slot diffuser 48 inches long has an approximate catalog rating of 4.2 × 3 × 48 = 605 CFM. The system may deliver a different amount; check the current product page before ordering.

Choose longer with fewer slots when:

  • You want a continuous architectural line across the ceiling

  • The diffuser runs along a window wall or the room's perimeter

  • The ceiling has long, uninterrupted framing runs

Choose shorter with more slots when:

  • Joists, soffits, or recessed lights limit how long the opening can be

  • You're replacing a compact existing register

  • You want the vent to read as a small detail rather than a design feature

How to Choose Your Slot Count in 4 Steps

Step 1: Find the Airflow Your Room Needs

  • New construction: The mechanical plans list the CFM for each supply outlet. Use those numbers.

  • Remodel: If you know the old vent's CFM, match it.

  • No data: Do not size from floor area alone. Ask your HVAC contractor to determine required outlet CFM from the system design, or send mechanical plans to Cryptic Air's in-house HVAC team for a free takeoff.

For a deeper look at airflow ratings, see our Linear Slot Diffuser CFM Chart.

Step 2: Check How Much Space You Have

Cryptic Slot models fit nominal openings 2 inches wide per slot: 1 slot fits 2 inches, 2 slots fit 4 inches, and up to 12 slots fit 24 inches. The visible face is wider. Stock lengths vary by model and can extend to 84 inches; check the current listing. Custom lengths are available at no extra charge, but the nominal width is determined by slot count.

Step 3: Match CFM to Slot Count and Length

Start with the outlet CFM specified by your mechanical plan. The three 24-inch examples below illustrate how rated CFM changes with slot count at the same length; they are not room-size recommendations.

Example Size

Approx. Rated CFM*

Nominal Opening

1-slot × 24"

101 CFM

2 inches

2-slot × 24"

202 CFM

4 inches

3-slot × 24"

302 CFM

6 inches

*These are approximate catalog ratings calculated from size, not guaranteed delivered CFM or lab-tested acoustic measurements. Confirm the rating on each live product page and ask the HVAC contractor to confirm the layout and air distribution.

Step 4: Match the Plenum Box

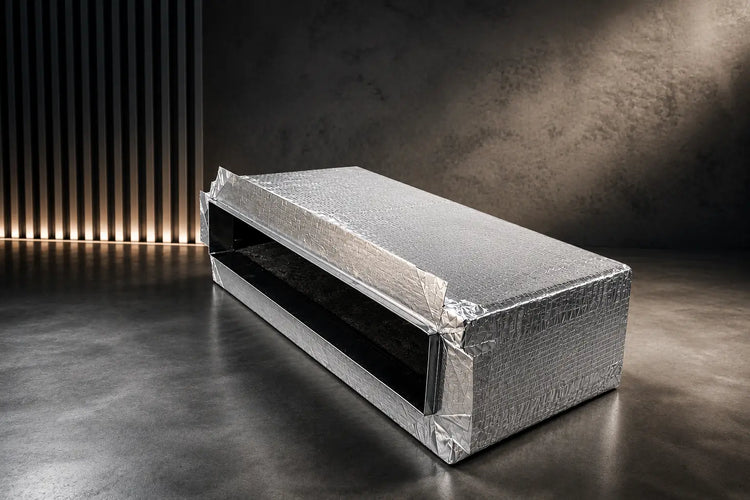

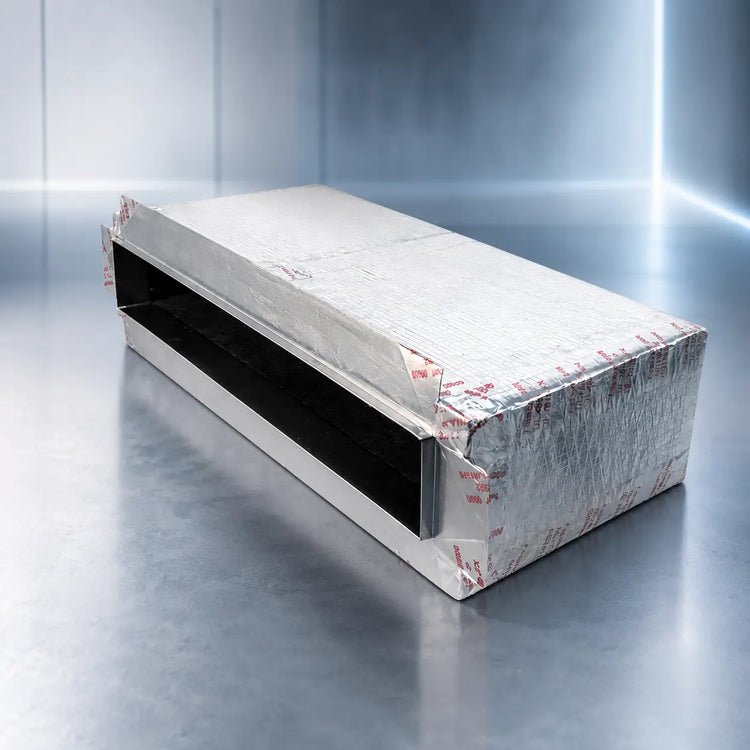

For a new installation, a properly matched plenum is recommended. Cryptic Air's R6 foil-faced fiberglass plenums are sold online for 1-, 2-, and 3-slot diffusers in lengths of 12, 18, 24, 36, 48, 60, 72 and 84 inches. For 4-slot and larger plenums, call 786-629-9699. A retrofit may reuse a compatible existing duct connection and does not always need a new Cryptic plenum. For more information, read our guide on how to calculate plenum box size, or browse insulated plenum boxes.

Replacing an Existing Vent? Let the Opening Decide

In a retrofit, the existing opening makes most of the decision for you:

  1. Remove the cover, then measure the duct opening at both ends and in the middle. Use the smallest measurement to make sure the diffuser neck fits.

  2. Use the width to find the slot count: 2" = 1 slot, 4" = 2 slots, 6" = 3 slots, 8" = 4 slots.

  3. The opening length is your diffuser length.

A nominal 4-inch-wide opening corresponds to a 2-slot Cryptic Slot diffuser, but check the length, neck width and mounting clearance. Do not assume an opening up to 1 inch larger than the neck always fits. See How to Measure Vent Covers for measuring guidance.

Keep in mind that a new diffuser won't add airflow the duct behind it can't deliver. If a room was always stuffy, the ductwork may be the real issue.

5 Common Sizing Mistakes

  1. Sizing by looks alone. A long, elegant diffuser that far exceeds the room's airflow can cause weak air throw.

  2. Forgetting about multiple vents. Two vents in a room share its airflow. Each one needs only half.

  3. Oversizing "just to be safe." A little headroom helps. A lot of headroom hurts air distribution.

  4. Ignoring plenum compatibility. New installations should use an appropriately sized plenum, while retrofits may reuse a compatible existing duct connection.

  5. Measuring the face instead of the opening. The visible face is wider than the part that fits into the hole. Always measure the opening.

Still Not Sure? Let Us Size It for You

Send us your mechanical plans or room dimensions, and our in-house HVAC team will spec the slot count, length, and quantity for every room at no charge. Call (786) 629-9699, email info@cryptic-air.com, or shop linear slot diffusers by slot count.

Contractors can also apply for pro pricing.


FAQ

Neither is better; they suit different situations. At the same length, a 2-slot diffuser moves about twice as much air as a 1-slot. At the same airflow, a 1-slot diffuser is twice as long and half as wide. Choose based on the CFM you need and the space available.

For Cryptic Slot diffusers, each slot moves roughly 50 CFM per foot of length. A 4-foot 1-slot diffuser is rated at about 200 CFM, and a 4-foot 2-slot at about 400 CFM. The exact rating is listed on every product page.

Usually the opposite. At a fixed airflow, more open area means lower air velocity, and lower velocity is quieter. Noise problems more often come from an undersized diffuser or plenum.

Large rooms, long rooms, and rooms with two exterior walls often get more even comfort from two smaller diffusers placed apart. In a compact room, one diffuser is usually enough. If you have HVAC plans, follow them.

No. The diffuser controls how air enters the room, not how much air arrives. Airflow is set by your HVAC system and ductwork. A larger diffuser only lowers the air velocity.

We cut every diffuser to your exact dimensions at no extra charge. Enter your measurements when you order.

The math is the same in all three locations. Placement affects how the air spreads through the room, not the diffuser's rating.
