A linear slot diffuser CFM chart is the single most useful document in HVAC design, and the one most residential contractors never open. It tells you exactly what airflow a specific diffuser can deliver, at what noise level, and over what throw distance. Read it right and you spec a system that runs quiet, even, and efficient. Read it wrong (or skip it) and you get whistle, cold spots, and callbacks.
I'm Ben Zaudrer, third-generation HVAC and founder of Cryptic Air. We publish CFM data on every Cryptic Slot linear diffuser we make. Here is how to read a linear slot diffuser CFM chart, where to find reliable ones, and how the numbers feed into your plenum sizing and system design.
Understanding the Linear Slot Diffuser CFM Chart for HVAC Design

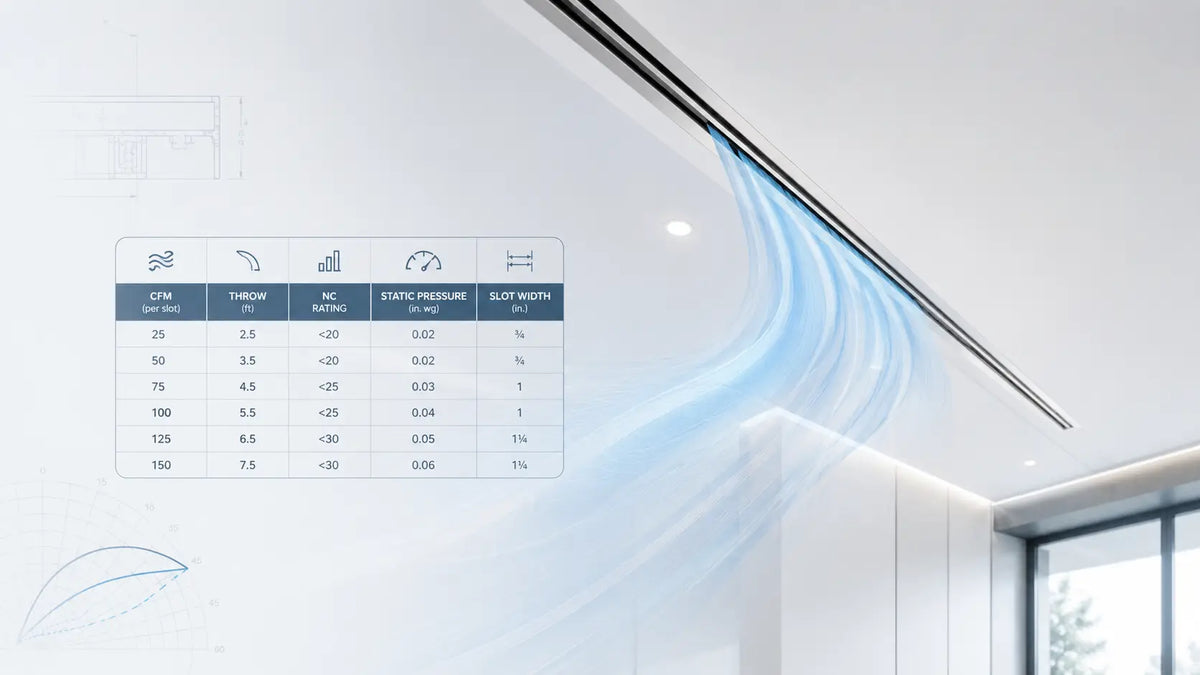

A linear slot diffuser CFM chart for HVAC design shows the relationship between airflow (CFM, cubic feet per minute), slot width, throw distance, noise criteria (NC rating), and static pressure drop. The whole point of the chart is to help you pick the right diffuser and slot configuration so the airflow, noise, and throw all land where you need them.
Why CFM matters. Every room in a house has a load, calculated by a Manual J. That load translates directly into required CFM at each supply diffuser. Undersized diffusers whistle. Oversized diffusers throw too far and lose comfort. The CFM chart is how you match diffuser capacity to room load.
Why slot width matters. A 1/2-inch slot at 100 CFM per foot behaves completely differently from a 1-inch slot at 100 CFM per foot. Narrower slots throw longer and quieter. Wider slots deliver more CFM per foot but at a shorter throw. The chart shows both so you can compare.
Why throw distance matters. The throw distance on the chart tells you how far the exiting air travels before it drops into the room. Match throw to the largest room dimension. If throw is short of the far wall, you get cold spots at the wall. If throw exceeds the room, air recirculates and you feel drafts.
At Cryptic Air, our 1-slot, 2-slot, and 3-slot linear diffusers publish CFM data at multiple flow rates so you can pick the exact configuration for your project. See what a 1-slot linear diffuser or 2-slot looks like on the site.
How to Accurately Read a Linear Slot Diffuser CFM Chart
How to accurately read a linear slot diffuser CFM chart, step by step:
Step 1. Get your required CFM per linear foot. Take the room's total CFM (from Manual J) and divide by the diffuser length you are planning to use. Example: 400 CFM room, planning a 4-foot diffuser, needs 100 CFM per linear foot.
Step 2. Find the row for your slot width. CFM charts organize rows by slot width (3/8 inch, 1/2 inch, 3/4 inch, 1 inch). Locate the row matching the diffuser you are considering.
Step 3. Read across to the CFM column. Find the column that matches your target CFM per foot. That intersection gives you three numbers: throw distance, NC rating, and static pressure drop.
Step 4. Verify NC (noise criteria) is acceptable. Residential should stay under NC 25 at design flow. Commercial can go up to NC 30 or 35 in high-activity spaces. If the diffuser is rated NC 30 at 100 CFM per foot and you are in a bedroom, size up: wider slot, longer diffuser, or more diffusers.
Step 5. Verify throw distance matches the room. Throw should reach the opposite wall or design zone. If throw is 15 feet and your room is 20 feet, you get cold spots. Size up throw by using a narrower slot at the same CFM per foot (throw increases as slot narrows).
Step 6. Note the static pressure drop. Add it to your total system static pressure. If measured static exceeds the air handler's rated capacity, the system runs poorly regardless of diffuser choice.
How to read a linear slot diffuser CFM chart accurately is really about matching four variables (CFM, throw, noise, pressure) to your specific room. Skip any one and the install underperforms.
Finding Reliable Data and Resources for Your Project
Not every CFM chart on the internet is trustworthy. Here is where to find the ones that are.
Where to Download Linear Slot Diffuser CFM Charts for Engineers?
Where to download linear slot diffuser CFM charts for engineers: go direct to manufacturer sites. Greenheck (greenheck.com), Krueger (krueger-hvac.com), and Titus (titus-hvac.com) publish full performance data as PDFs on their product pages. Cryptic Air publishes CFM data for the Cryptic Slot line on our product pages at cryptic-air.com. Free, downloadable, and tested.
For general HVAC design references, ASHRAE Handbook Fundamentals (Chapter 20, Space Air Diffusion) is the standard textbook and covers the underlying physics of every CFM chart on the market.
Where Can I Find a Reliable Online Linear Slot Diffuser Performance Table?
Where can I find a reliable online linear slot diffuser performance table that you can trust for real design work? Two rules:
Rule 1: Only trust manufacturer data. Third-party aggregator sites often republish outdated or generic data. Manufacturer sites publish the actual test data for the actual product you are buying.
Rule 2: Verify the test standard. Reliable performance tables for linear slot diffusers are tested to ASHRAE Standard 70, which is the specific standard for testing the performance of air distribution outlets (registers, grilles, and diffusers). If the table does not cite ASHRAE 70, treat it as marketing material, not engineering data.
At Cryptic Air, our performance data is available on request and matched to specific SKUs. Call 786-981-1676 or check individual product pages for the CFM data on the exact size you are speccing.
