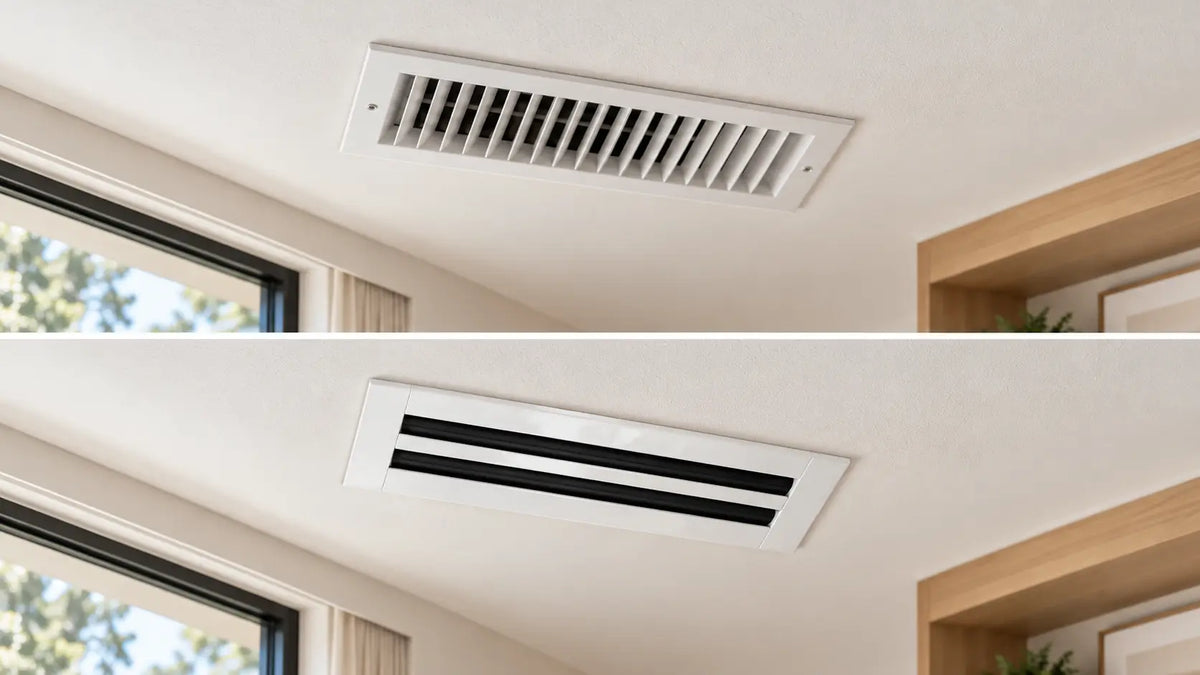

Yes, you can often replace an existing AC vent cover with a linear slot diffuser without changing the ductwork or cutting new drywall. The replacement must be designed for retrofit installation, fit the existing opening and connection, and suit the airflow that outlet needs to deliver. A matching size is a starting point, not a guarantee of compatibility.
The project becomes more involved if you want to turn a short rectangular vent into a long architectural slot or create a frameless finish. Those changes can require a new opening, duct connection, plenum box, and drywall work. Before ordering, decide whether you want to upgrade the vent within its current footprint or redesign how it fits into the room.
This guide explains how to check your existing vent, choose the appropriate replacement, and recognize when the job needs an HVAC contractor.
What Are You Actually Replacing?
When homeowners say they want to replace an AC vent, they usually mean the visible cover on the ceiling or wall. Behind it is a duct boot or other connection that brings air to the opening. Replacing that cover can be a relatively small project; changing the connection or moving the opening is a different scope of work.
Start by identifying whether the opening is a supply outlet or a return inlet. A supply outlet delivers conditioned air into the room. A return pulls room air back toward the HVAC system. Do not assume that a diffuser chosen for supply air is suitable for a return simply because it fits the hole. Confirm the intended application and, if your return grille holds a filter, preserve the filter arrangement and access.
At Cryptic Air, our framed Cryptic Slot line is designed for replacing existing vent covers. It is the starting point for a retrofit where you want to keep the current opening. If you are still comparing the overall options, our guide to linear slot diffusers vs. traditional registers covers the broader design and purchasing tradeoffs.
When Can You Keep the Existing Opening?
A straightforward replacement is possible when the diffuser’s installation dimensions match the opening, its body clears the existing connection, and its mounting arrangement works with the surface. The face also needs to cover the finished edge of the opening and any marks left by the old register.
For example, suppose the duct opening measures 10 inches long by 4 inches wide. Cryptic Air lists a 10-by-4-inch option in its 2-slot linear slot diffuser range. That makes it a candidate to check against your installation. You still need to confirm the product dimensions, mounting, and airflow requirements before ordering.
Keeping that opening also means keeping a compact vent. A diffuser fitted to a 10-inch opening will not create the several-foot-long ceiling line you may have seen in an architectural photograph. Decide early whether the existing proportions give you the appearance you want.
| Your goal | Likely approach | What to confirm |
|---|---|---|
| Upgrade the cover within its existing footprint | Framed retrofit diffuser | Opening, insertion clearance, mounting, face coverage, airflow |
| Replace a cover with an unusual opening size | Manufacturer-approved custom solution | Exact dimensions and available configurations |
| Convert a short vent into a long slot | Modify the opening and air connection | Framing, ductwork, plenum, airflow, and finishing |
| Create a flush, frameless finish | Mud-in installation | Product-specific preparation and drywall work |
| Replace a return or filter grille | Return-compatible product | Return performance and filter access |
Check These Details Before Ordering
Begin with the opening itself. Remove the old cover, where safely accessible, and measure the exposed duct opening rather than the outside frame. The frame normally extends beyond the opening, so using its dimensions can lead to the wrong order. Record the length and width, label the location, and photograph the opening with the tape measure visible. Our guide on how to measure vent covers walks through the process.
Next, compare your measurements with the replacement’s dimensional drawing. The nominal size identifies the intended opening, the neck is the portion that enters the connection, and the face is the part visible after installation. These are different dimensions. Check any required insertion depth and note obstructions, shallow boots, or hardware immediately behind the old cover.
Look at the surrounding finish as well. A new face may fit the duct opening but expose old screw holes, an unpainted border, or a rough drywall edge. That does not necessarily rule out the replacement, but you should allow for touch-up work or ask about a suitable frame before placing the order.
Finally, check airflow suitability. CFM, or cubic feet per minute, describes airflow volume. Ask your contractor for the required airflow at that outlet and compare it with the exact diffuser’s performance data. Where available, review pressure drop, sound ratings, and throw, which describes how far the discharged air travels. The same opening size does not mean two products perform identically.
Photographs and measurements help with physical fit; airflow measurements or mechanical plans help with performance. If you need to choose a slot configuration, use our guide to how many slots your linear diffuser needsalongside the specifications for your installation.
Do You Need a New Plenum Box?
You do not automatically need a new plenum box when replacing an existing vent cover. A retrofit diffuser may be able to use the duct boot or connection already serving the opening, provided that connection is compatible with the product and the required airflow.

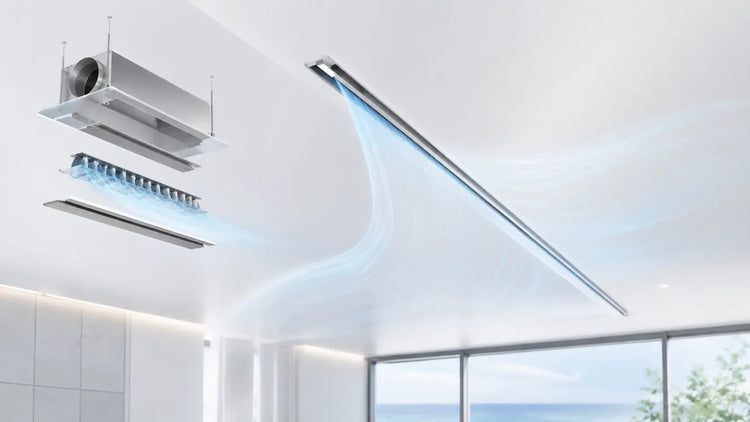

A longer diffuser, relocated outlet, or different connection can change that answer. Your contractor may need to provide a plenum or transition that connects the duct to the new diffuser and distributes air appropriately. Ask how the whole assembly will fit before choosing the visible face.
If your project needs a new connection, review our linear diffuser plenum boxes. Specify the diffuser and its connection together so the lengths, widths, inlet arrangement, and available space work as one installation.
Can You Get a Frameless Look Without Drywall Work?
A framed replacement and a mud-in diffuser achieve different finishes. A framed diffuser covers the edge of the opening and remains visible as a finished component. A mud-in diffuser is integrated into the surrounding drywall so its border blends into the surface.
Our Cryptic Pro mud-in diffusers are an option for projects that include the necessary preparation and finishing. In an existing room, expect to coordinate that work rather than treating a mud-in product as an interchangeable cover. Check the installation instructions for the selected model before scheduling the drywall contractor.
If your main goal is a cleaner vent in an already finished room, a compatible framed model is usually the simpler route. If you want the flush appearance and are already opening or refinishing the ceiling, plan the diffuser at the same time.
Will Replacing the Vent Affect Airflow or Noise?
It can. A diffuser changes the outlet through which air enters the room, and its performance depends on the airflow, the product, and the connection behind it. A replacement should maintain the required delivery while directing air appropriately for the room.
Manufacturer engineering guidance shows that inlet conditions and balancing dampers can affect noise, pressure drop, and air distribution. That is why physical fit alone is not enough, particularly where there is a tight bend or an obstruction behind the opening. An HVAC contractor can assess the connection and check delivery after installation.
Do not expect a new cover to solve every comfort problem. If the room already receives too little air, or the vent whistles before replacement, identify the cause first. A decorative upgrade does not repair a disconnected duct or rebalance an entire system. Likewise, a linear diffuser is not automatically quieter than the register it replaces.
Can You Install the Replacement Yourself?
A compatible framed cover may be a manageable DIY project if you can safely reach the vent and follow the manufacturer’s mounting instructions. Changing the opening, altering a duct connection, installing a plenum, or creating a mud-in finish calls for additional planning and trade work.
For a simple cover replacement, the process is:
- Turn off the HVAC system and remove the existing cover.
- Confirm the opening, connection, mounting, and replacement dimensions.
- Check the accessible edges and surrounding finish for damage.
- Install the diffuser using the specified hardware and method.
- Adjust its directional blades according to the instructions.
- Run the system and check for new noise, rattling, or uncomfortable drafts.
A hand check can reveal an obvious change, but it cannot verify CFM. Have a contractor measure airflow if delivery is uncertain or the replacement changes comfort. Follow the model’s instructions for sealing and mounting, and maintain access to any serviceable components.
What Should You Send Us Before Buying?
To help us assess a replacement, send a photograph of the current vent, a photograph with the cover removed, and the opening’s length and width. Include the installation location, whether it is supply or return, and any available airflow information. Show shallow connections, nearby trim, and old screw holes that the replacement may need to cover.
Tell us which finish you want: a framed cover in the existing opening, a longer architectural slot, or a mud-in installation. If the dimensions are unusual, ask about available custom sizing before changing the opening to suit a stock product.
Browse our linear slot diffusers and modern vent covers, or contact Cryptic Air with your measurements and photos. We can help identify a suitable product and what additional installation details need checking before you order.
