I'm Ben Zaudrer, third-generation HVAC. This is the exact 7-step process we use at Cryptic Air when a homeowner or contractor calls to size a replacement.
How to Measure Vent Covers in 7 Steps
1. Remove Your Existing Vent Cover
Unscrew the current cover and pull it off the wall, ceiling, or floor. If it has been in place for years, paint or a dust seal may hold it in. Score around the edge with a utility knife, then work a putty knife under the frame. Setting the old cover aside lets you measure the opening directly, which is the only measurement that matters for a replacement.
2. Do Not Measure the Existing Cover Frame
This is the number one mistake we see. The face of a vent cover extends past the duct opening on all sides so it can cover the drywall cut. If you measure the frame, you order a replacement that is too big to fit through the opening. Every home vent cover we ship at Cryptic Air is sized to the duct opening, not the outside dimensions of the old cover.
3. Measure the Width of the Air Duct Opening
Run a tape measure across the width of the hole itself, edge to edge, at the widest point. Old drywall cuts are rarely square. If the opening is out of square by more than 1/8 inch, note both measurements and use the smaller of the two. That gives the frame a snug fit without a visible gap on one side.
4. Measure the Height of the Air Duct Opening
Measure the height of the opening the same way. Edge to edge, at the widest point. On a linear slot diffuser opening, the height is often only 2 to 6 inches, but precision still matters. A 1/4-inch mismatch on a long linear cover shows up as a visible gap the second the paint dries.
5. Measure the Depth if Needed for Custom Vent Covers
For a standard face-mount replacement, you only need width and height. For custom vent covers, mud in linear diffuser installs, or when you are pairing a diffuser with an HVAC plenum box, measure the depth from the finished surface back to the duct connection. That determines the maximum insertion depth of the vent's neck and affects airflow performance.
6. Write Down All Measurements Carefully
Write down width, height, and depth (if measured) in inches, and label each vent by location (primary bedroom ceiling, kitchen return, hallway floor). If you are ordering multiple vents in one project, number them. Custom sizing at Cryptic Air is included at no upcharge, but a mislabeled measurement can cost you 4 to 8 days on a project timeline.
7. Double Check Measurements Before Ordering a New Vent Cover
Re-measure every opening once more before you place the order. On a custom home, contractors deal with 25 to 100 vent openings. One wrong number turns into a returned unit and a delayed install. We recommend measuring twice, writing the numbers on painters tape stuck next to each opening, and photographing the tape before ordering.
Find the Right Vent Cover Size With Cryptic Air

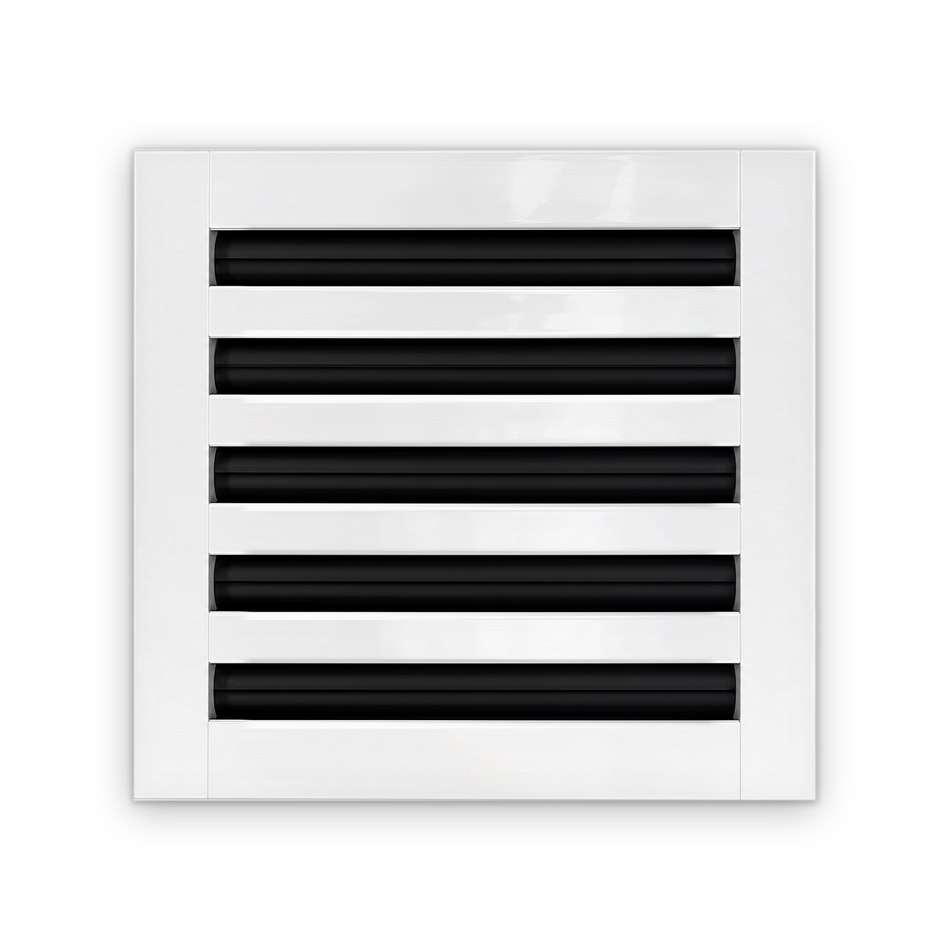

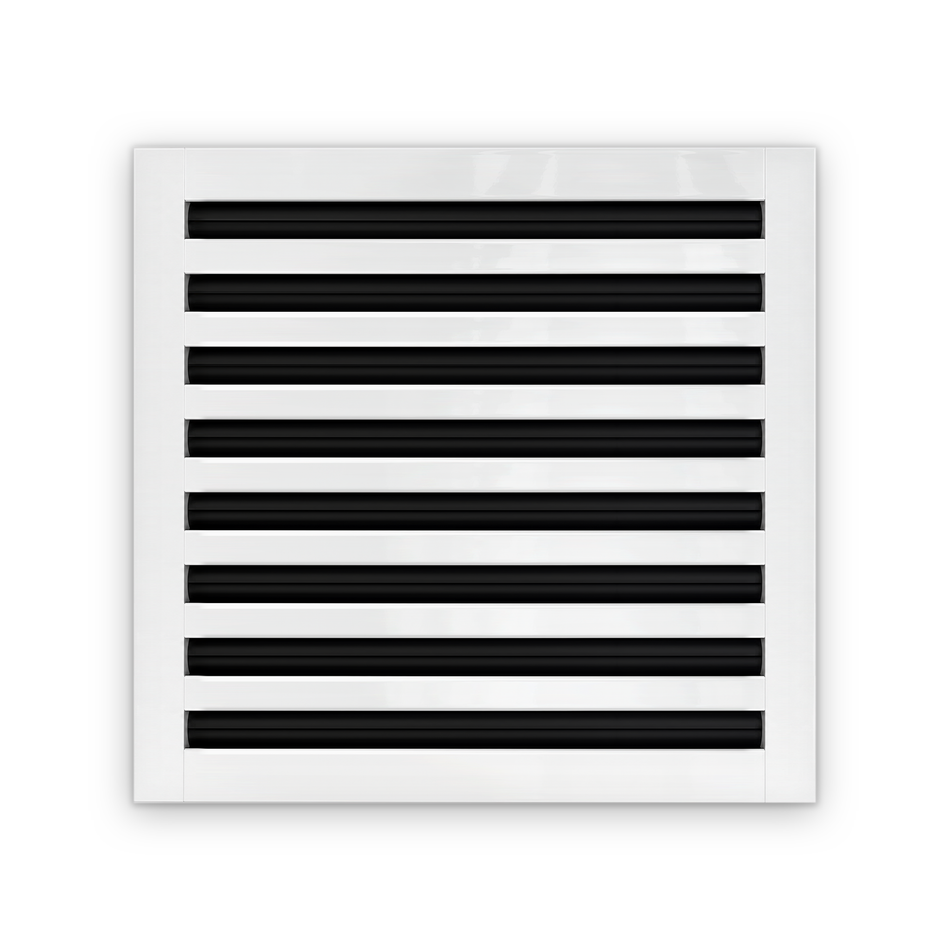

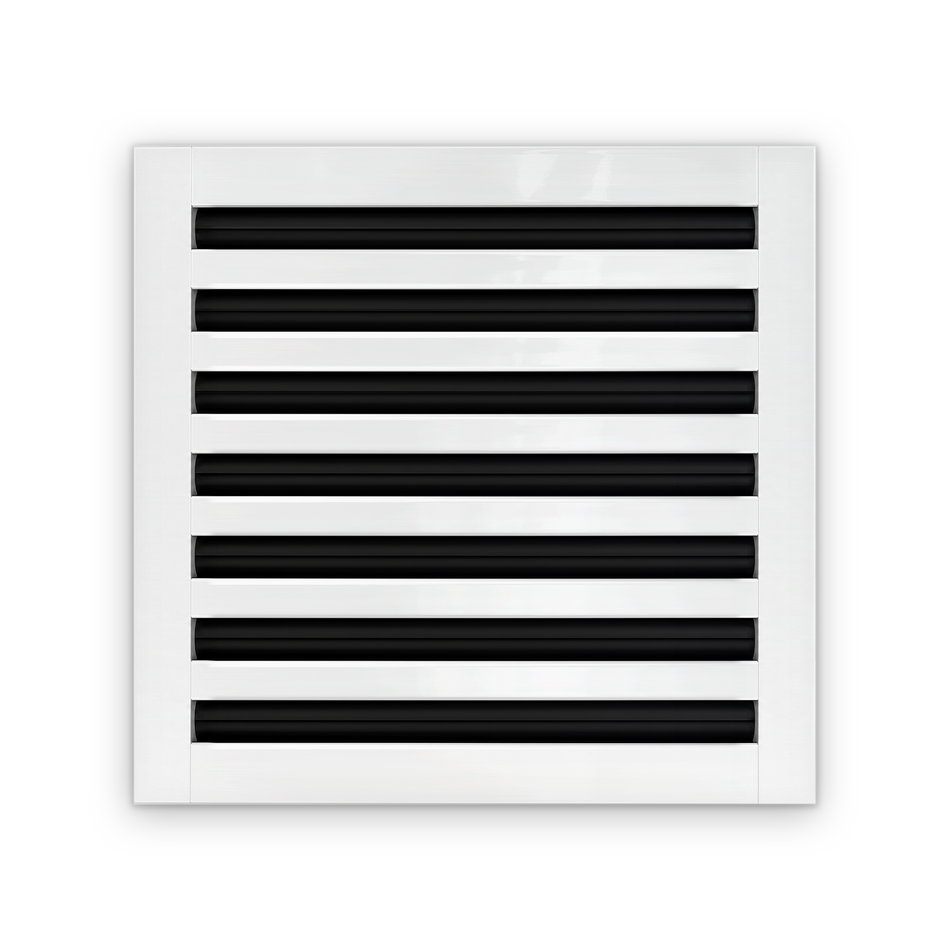

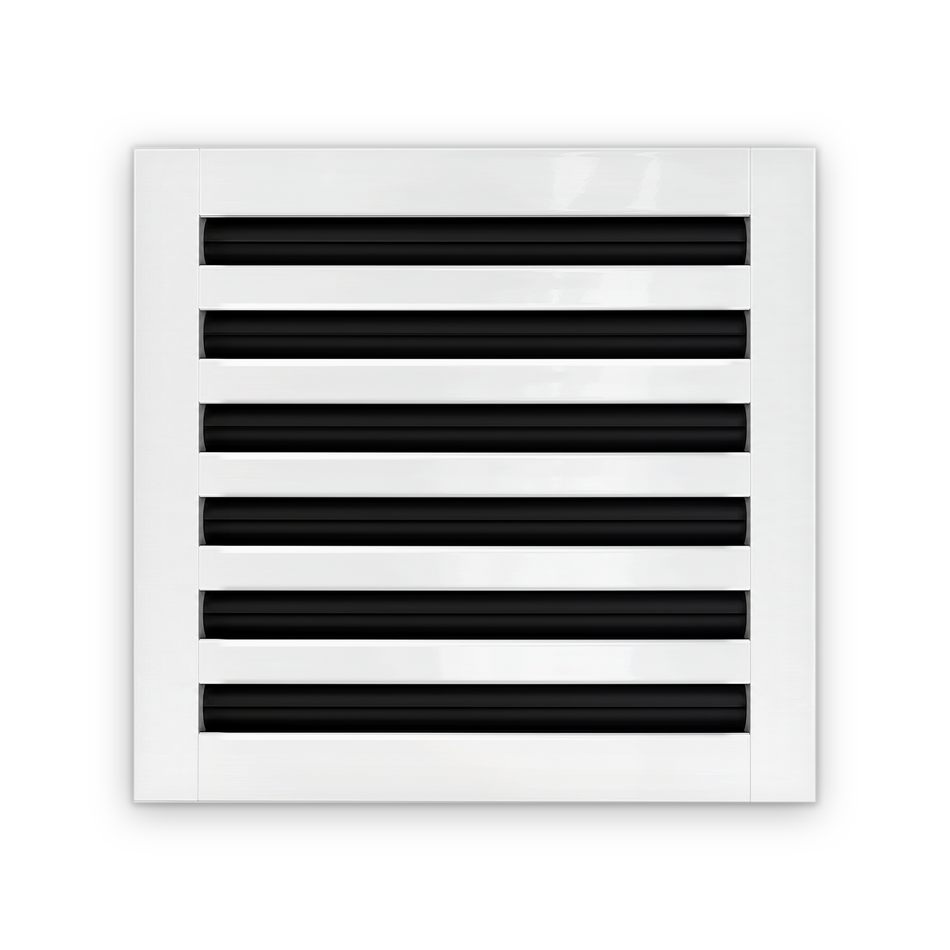

Cryptic Air makes framed aluminum linear slot diffusers, modern vent covers, and R6 insulated plenum boxes in Miami, Florida. Every product ships factory-direct in 4 to 8 calendar days, and custom sizing is included at no upcharge on the Cryptic Slot line. If your measurements do not match a standard size, we build the exact size you need at the same price.
If you want a second set of eyes on your measurements, call us at 786-981-1676. A Florida HVAC pro will help you size it.
